SKU# PB-Access-Kit
Single-Door Access Control Kit
Everything you need to control an door—prepped, packed, and ready to install.
- All-in-One Access Control: Includes everything needed for a 1- or 2-door Bluetooth access control setup.
- No IT Required: Simple install—no wiring back to a panel, no software setup, no networking headaches.
- Fast Install Time: Typical jobs completed in under an hour per door.
- Cloud-Based Control: Manage users, schedules, and access remotely via the PAC-BLU app.
- Expandable and Modular: Add more doors and users as your needs grow.
Get Started with Modern Access Control.
PAC-BLU gives you the power to Control, Access, and Manage doors, gates, cabinets and more — all through a simple, cloud-connected system.
Control
PB-Access-Kit
Easy-to-install, power supply included – designed to make installs quick and easy.
Access
NexGen™ Mobile App
No cards, fobs or readers required – simply open the PAC-BLU™ app for instant access when you need it!
Manage
Sentinel™ Web Dashboard
Access schedules, user management, audit trails, alerts, and more powerful features.
Quick Install
No panels, no homerun wiring—just connect to your lock and setup with the PAC-BLU app.
Audit Trails
Control doors, strikes, maglocks, and more without needing IT support or advanced training.
Mobile Access
Whether you’re installing 1 or 100 doors, PAC-BLU scales without adding complexity.
User Management
Unlock doors, assign keys, and monitor access from anywhere using the cloud dashboard.
Specifications
| SKU | PB-Access-Kit |
| Product Type | BLE-Enabled Smart Lock Controller |
| Application | Electronic Access Control |
| System Compatibility | PAC-BLU App + Cloud Platform |
| Enclosure Material | ABS plastic, indoor-rated with ventilation |
| Voltage | Input: 6-12VDC Output: 12VDC |
| Current | 3A peak |
| Backup Power | Secondary 6-12V input supported |
| Power Supply | Input: 100-240VAC Output: 12VDC 3A FCC, UL-Listed |
| Communication Protocol | Bluetooth Low Energy (BLE) |
| BLE Range | Busy environments ~30–50 ft. Line of sight ~150 ft. |
| Mobile App | PAC-BLU App (iOS & Android) |
| Access Control | Unlimited users |
| Event Logging | Yes, cloud-stored |
| Lock Scheduling | Configurable via app or web dashboard |
| Sensors | 2 Independent Inputs |
| Request to Exit (REX) | Configurable |
| App Download | App Store Google Play |
| Installation Manual | Download |

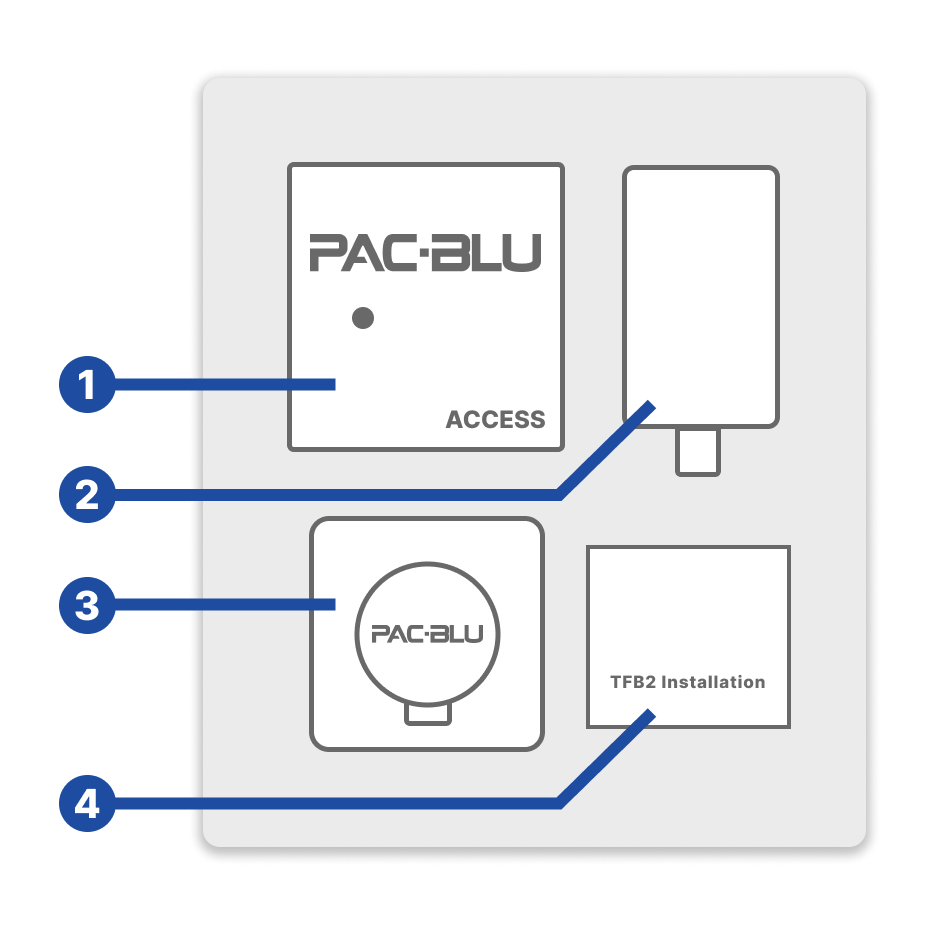

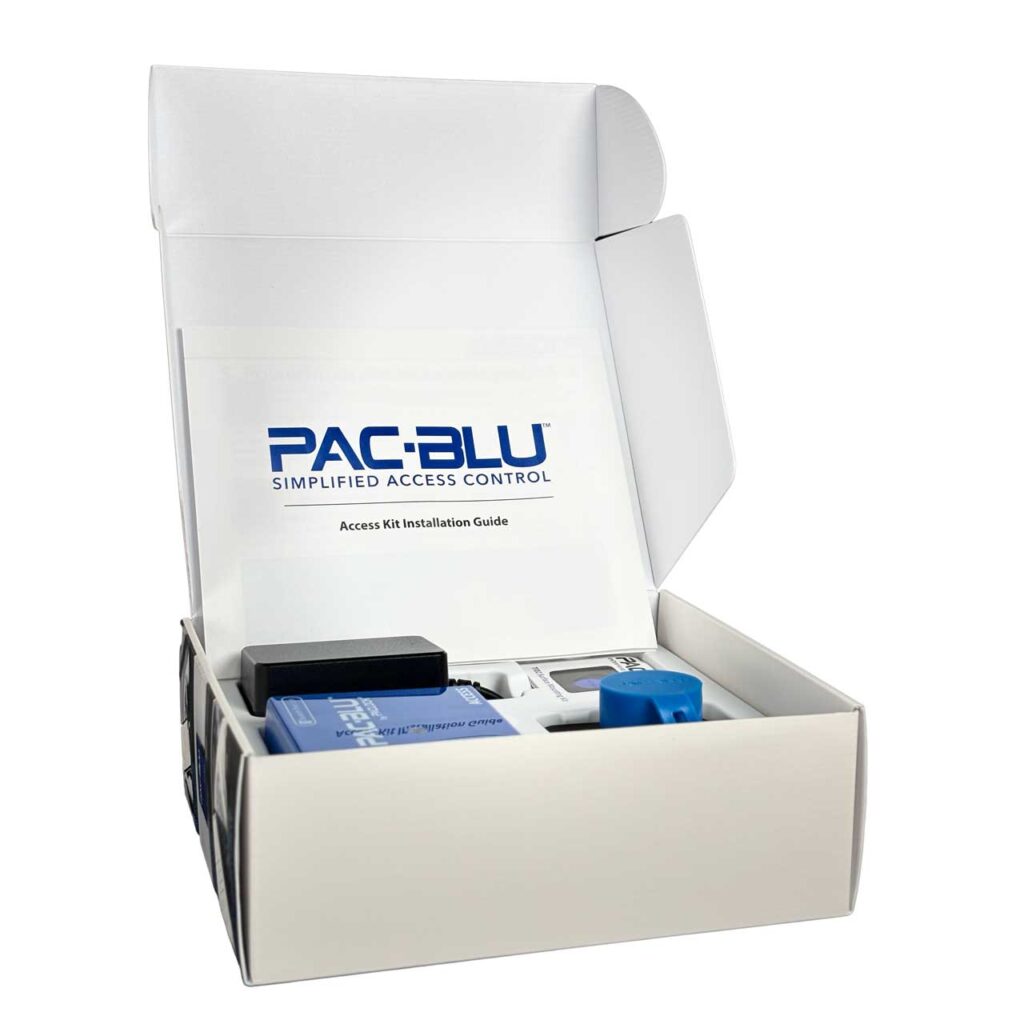

What’s in the Box?
1. PB-Access
- Mounting Screws and Anchors
2. Power Supply
3. TFB2
- Mounting Screws and Anchors
- Mounting Plate
- 2.5mm Allen Wrench
4. TFB2 Installation Guide
